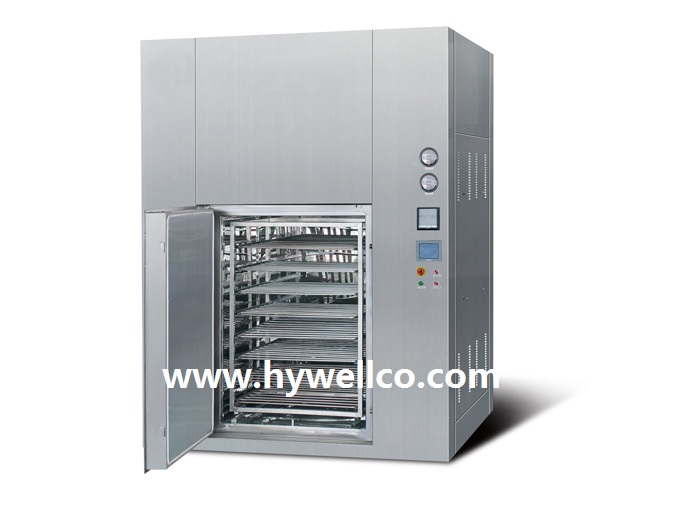

Dry Heat Sterilization Oven for Glass Bottle

  • Dry Heat Sterilization Oven for Glass Bottle
  • Dry Heat Sterilization Oven for Glass Bottle
  • Dry Heat Sterilization Oven for Glass Bottle
  • Dry Heat Sterilization Oven for Glass Bottle

Dry Heat Sterilization Oven for Glass Bottle

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
    Packaging: Wood Box
    Productivity: 10-20 Set per Year
    Brand: Hywell
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 3-5 Set/Sets per Month
    Certificate: ISO CE GMP
    HS Code: 8419399090
    Port: Shanghai

Basic Info

Model No.: GM

Product Description

Dry Heat Sterilization Oven for Glass Bottle


Dry Heat Sterilization Oven for Glass Bottle Characteristics:

1. Drying temperature is controlled by designed program or PLC and temperature at two internal points will be recorded automatically.

2. Glass Bottle Sterilization Oven is aseptic under the temperature of 250℃, thus proving a reliable guarantee for elimination of heat source.

3. High efficiency air filters are mounted at both air inlet and outlet to prevent the outside from polluting the inside of oven.

4. Internal circulating hot air is filtered through high temperature and high efficiency air filter (HEPA), thus guaranteeing that the hot air entering into effective space will reach grade 100 in clean requirement.

5. No dead corners and sharp edges exist in its interior. The surface of its outside wall is passivity as low gloss and the surface of its internal wall be polished accurate.

6. GMP verification interface should be retained on the Dry Heat Sterilization Oven.

7. The main technical datum of Glass Bottle Sterilizer Oven is for reference. We also produce and design product as per customers' requirement.


We are professional Glass Bottle Dry Heat Sterilizer manufacturer. In "GMP" management the GM100 Series Glass Bottle Sterilization Cabinet filled up the blank in the state.


Optional Choices
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or Others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices PLC+HMI .


we design the sterilization oven base customer require !

Model Working temp(ºC) Overall dimension(mm) Clean air pressure of fan(at 250ºC) Clean air pressure of fan(at 250ºC) Laminar purifying grade Heating power(kw) Controlled tem error Temp difference between points
GM-1 20-250 1950x1300x2000 1500 700 100 15 ≤2ºC ≤3ºC
GM-2 20-250 1950x2150x2000 3000 700 100 24 ≤2ºC ≤3ºC
Dry Heat Sterilization Oven


About Us:

Hywell Machinery is a professional manufacturer of industrial drying machine, mixing machine and granulating machine. Our flagship products include the hot air dryer, vibration fluid bed dryer, belt dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and high speed granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying ,mixing and granulating solutions. Hywell Machinery constant faith is providing perfect products to customer, excellenting service to customer !

Quality control

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.

OUR SERVICES
Pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
Sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
After-sale service
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline.

Quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain.

Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
